model V

model V   USD$4995

The model V is constructed of hydroformed aluminium and composite reinforced polymer designed to give you freedom. The additional option of an articulated 3 wheel rear axle offers flexibility and different riding configurations.

Specifications

  • 2 wheel standard (3 wheel accessory included with all model V)
  • compact folding fully electric
  • 23kmh maximum speed
  • 14km (20km optional) range
  • ABS regenerative braking
  • 1.5hr charge time
  • weight 13.5kg model V (15.4kg for 3 wheel)

Colour Options

Green

GREEN

July 29, 2016

Red

RED

July 29, 2016

Charcoal

CHARCOAL

January 13, 2015

Silver

SILVER

January 13, 2015

Gold

GOLD

January 13, 2015

BUY YOUR FREEDOM USD$4995 BUY NOW

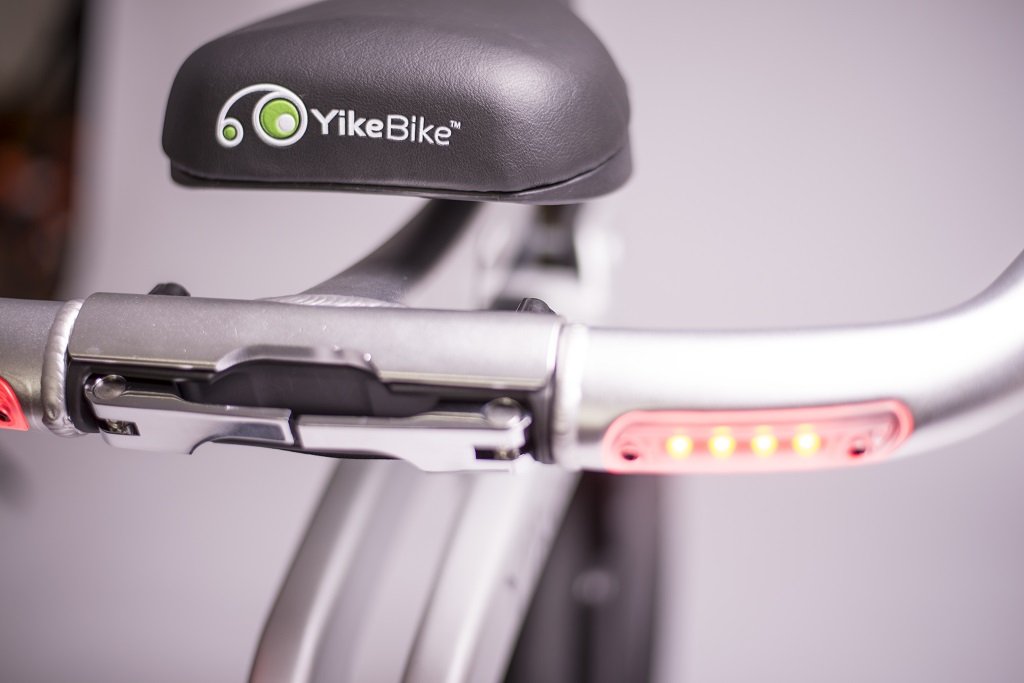

model-V-1

RIDER SAFETY

December 2, 2014

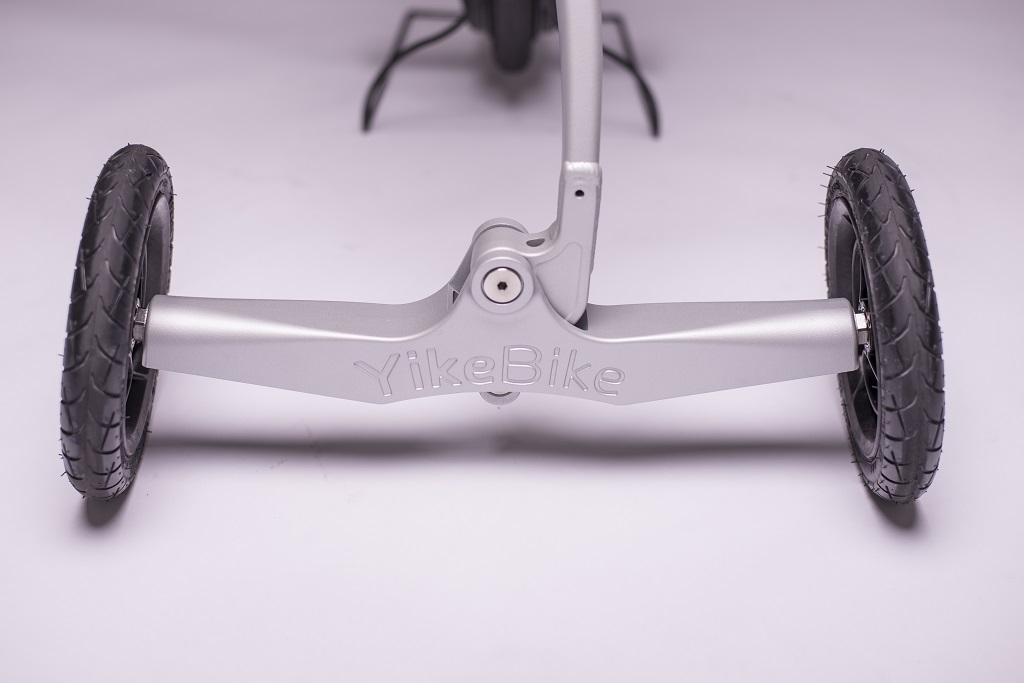

model-v-2

UNIQUE DRIVETRAIN

December 2, 2014

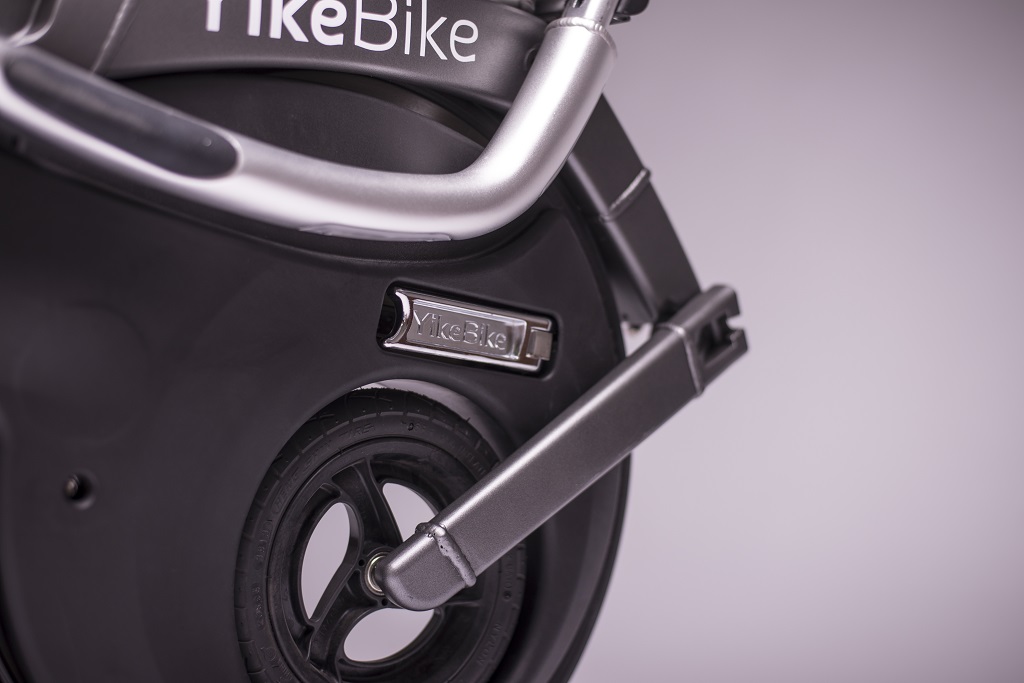

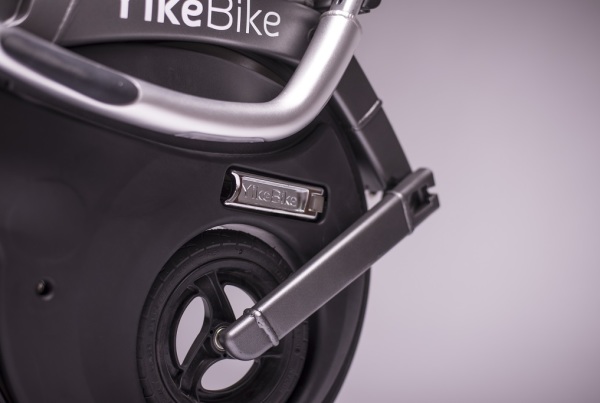

model-V-3

DISTINCTIVE

December 2, 2014

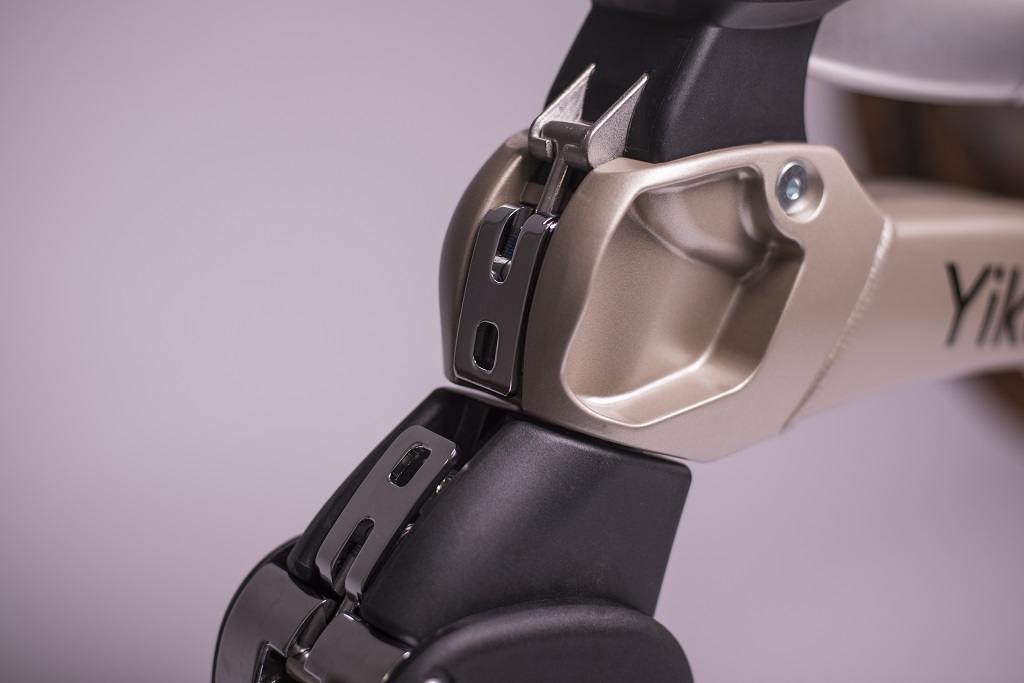

model-v-4

FLEXIBLE

December 2, 2014

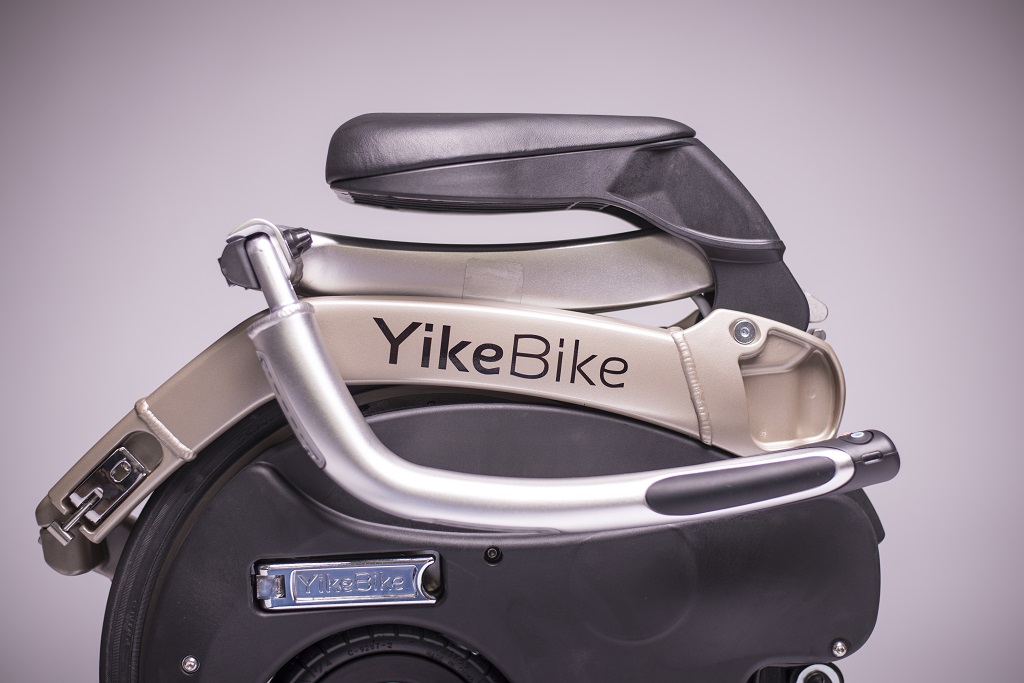

model-v-5

COMPACT

December 2, 2014

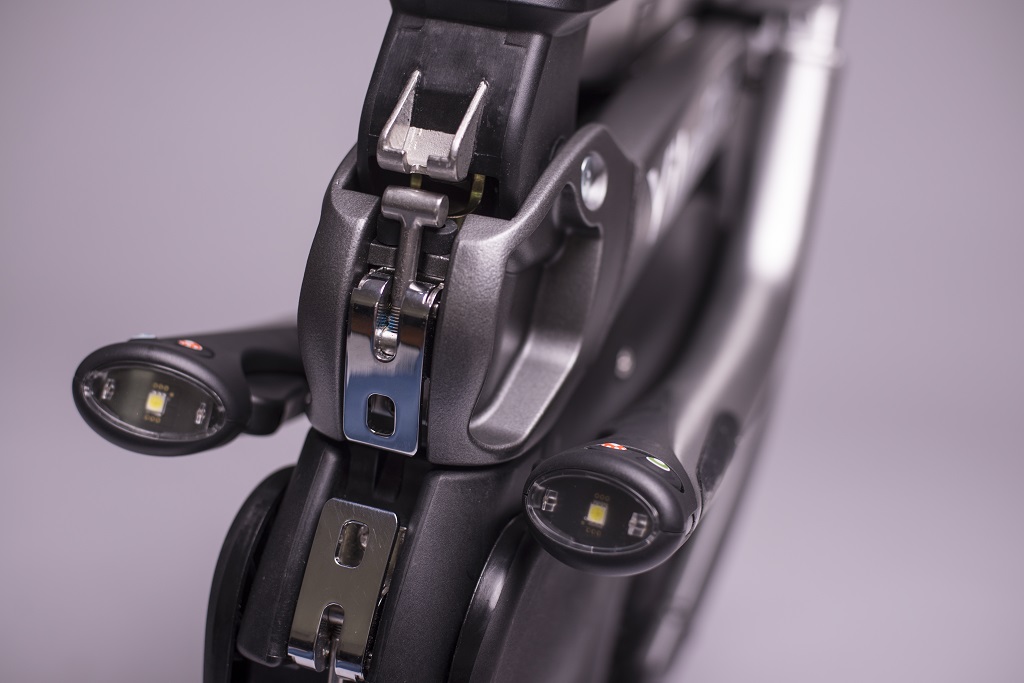

model-v-6

PROVEN TECHNOLOGY

December 2, 2014

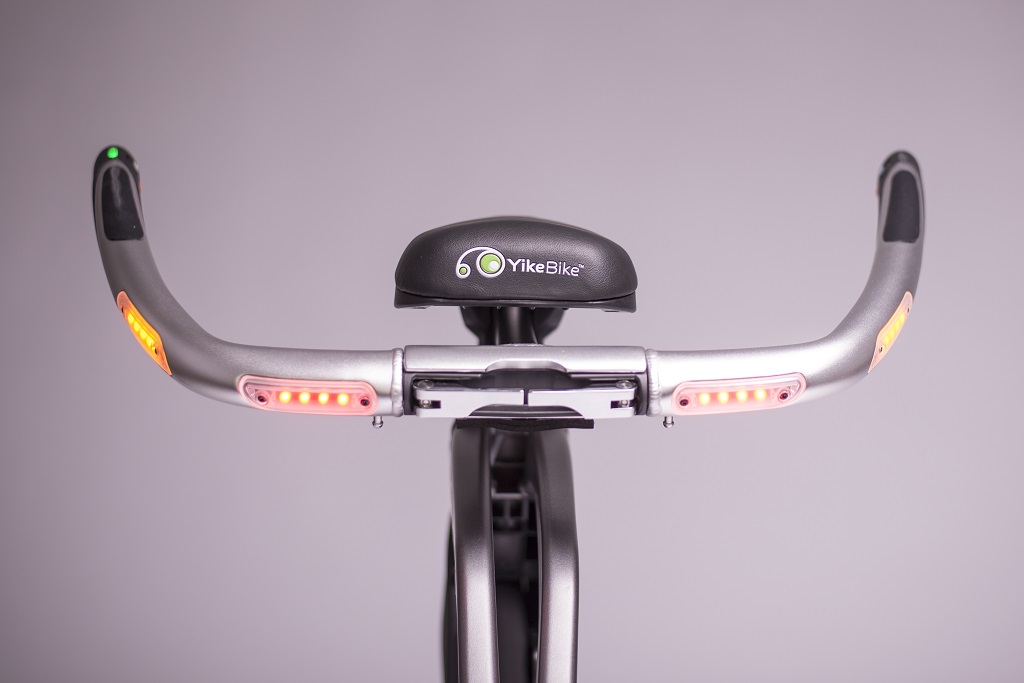

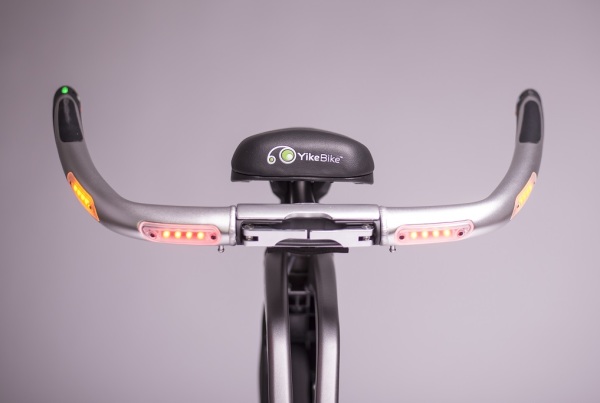

movel-v-7

ROBUST

December 2, 2014

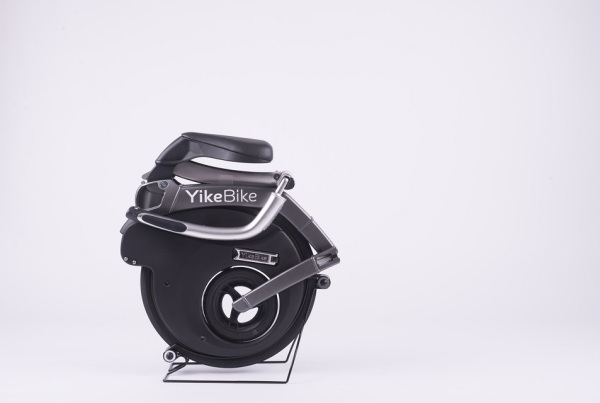

model-v-8

DURABLE

December 2, 2014

WHERE THE FREEDOM HAPPENS model C contact us

Detailed Specifications

Performance

  • Range:                             20km (12.5 miles)
  • Maximum Speed:23km/h (14.3mph)
  • Motor Output:less than 200W Continuous Power
  • Motor Speed:6000 rpm Brushless DC Electric Motor and torque sensor
  • Maximum Gradient:9% (5 degrees)
  • Front Wheel Size:20 inch (20×1.35” pneumatic with thornproof tube)
  • Rear Wheel Size:8 inch (8×1.25 pneumatic with thornproof tube)
  • Turning Circle:less than 3.8m

Physical

  • Weight:                             13.5kg  (15.4kg with 3 Wheel fitted)
  • Materials:                         Aluminium 6061, PA6-GF Nylon
  • Colour Option :               Gold, Silver, Charcoal

Electrical

  • Range:                             20km (12.4 miles)
  • Battery Capacity:           313 W/h Lithium Ion
  • Battery Voltage:             36V nominal
  • Charge Time:                   90 minutes

User

  • User Height:                   158-193cm recommended (5’2” – 6’4”)
  • User Weight:                  100kg maximum (220 lbs)

Safety

  • Braking:                           Electronic ABS regenerative braking
  • Braking Distance:         9m (from maximum speed)
  • Lighting:                          Permanent LED, White front, Amber Side and Red Rear
  • Horn:                                Audio Piezo Electric Horn and Indicator signals

Size

  • Fold Size:43 litres
  • Fold Time:less than 20 seconds
  • Volume – folded:660 x 190 x 550mm (665 x 490 x 580 with 3 wheel)
  • Volume – unfolded:1050 x 640 x 825mm (1040 x 640 x 825 with 3 wheel)

Package

  • HS Code:                          87.11.90
  • Accessories:                  3 Wheel Rear Leg Assembly

     Battery Charger and international power leads

     Display Stand

     Storage Bag

     Shoulder Strap

     Toolkit
